2021 New Type Chemical Industry Used Vacuum Drier Vacuum Rotary Dryer for Organic Solvent recycling
Product Description:
Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced
technology of harrow dryer. The moister of wet material will be evaporated by heat transmission. The stirrer with blade will
remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
Characteristics:
1. Wide application range, high drying speed. Because the rake vacuum pump use jacket to heat and high vacuum to vent gases. So it can almost apply for all materials with different quality and different shape. It is especially suitable for flamable and oxidable materials.
2. High quality products. The rake teeth turns in two directions constantly, and the material is well mixed.
3. Small steam consumption.
4. Easy operation. It can be used to reclaim volatilizable gases, and reduce environment pollution
Technical parameters
| Item | ZKG-500 | ZKG-1000 | ZKG-3000 | ZKG-6000 |
| Working volume ( L) | 300 | 600 | 1800 | 16.5 |
| Heating area (㎡) | 3.2 | 5.1 | 10.6 | |
| Stirring revolution (rmp) | 8-18 |
| Power (kw) | 4 | 5.5 | 11 | 22 |
| Design Pressure of Jacket ( mpa) | 0.3 |
| Pressure in the cylinder (mpa) | -0.096-0.15 |
Note: The above data is for reference only. If having special requirements, the factory can provide the service of consultation and design.
Applications
1. Pulpiness, paste-like mixture or powder materials.
2. Thermal sensitive material which required to be dried at lower temperature.
3. Materials that are easy to oxidize or explode and the material that have strong irritative or toxic.
4. Materials that required recovering solvent.Technical Parameter
Working:
Vacuum Harrow Dryer is an innovation horizontal batch-type vacuum dryer improved on the basic of introduced
technology of harrow dryer. The moister of wet material will be evaporated by heat transmission. The stirrer with blade will
remove material on hot surface and move in the container to form cycle flow .The evaporated moisture will be pumped by vacuum pump.
Sale service:
(1). Ensure product with high quality and pre-commissioning before delivery. (2). Delivery on time. (3). Provide full set of documents as customer’s requirements.
After-sale service:
Provide considerate services to minimize clients’ worries.
1. Assist clients to prepare for the first construction scheme.
2. Install and debug the equipment.
3. Train the first-line operators.
4. Examine the equipment.
5. Take initiative to eliminate the troubles rapidly.
6. Provide technical support.
7. Establish long-term and friendly relationship.
Service commitment:
1. Provide clients one-year warranty to make sure the machine work well.
2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely.
3. Send every client a preferential quotation.
Product Tags:
|
|

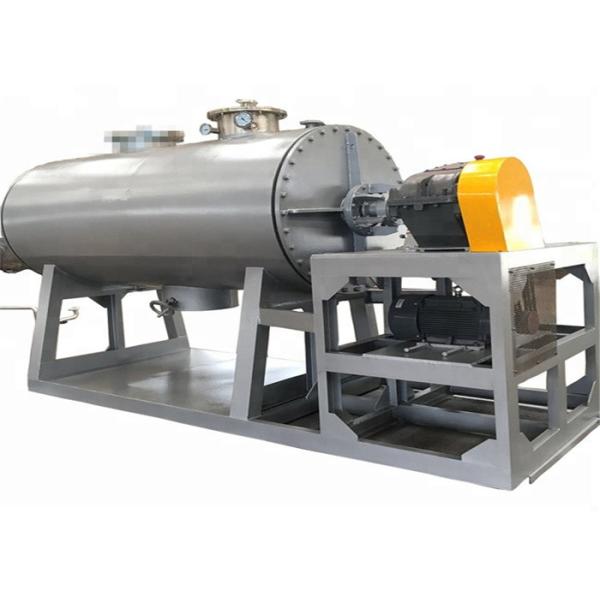

8-18rmp stirring Vacuum Drying Machine Images
|
